Managing LDAP Organizational Units and Groups
Clicking the Groups tab will bring you to the Groups management page.
You will see any Organizational Units (OU or Org) and Groups that currently exist in the local LDAP instance such as the "top" Org and the "administrators" Group.
Hovering over an object, represented as a circle in this page, will display information about that object and any objects it contains.
Clicking on one of the objects will also provide information and the interface to add or modify associated objects at that level.
Click on the "Root" circle to create a new Organization Unit that would be a peer of the "top" OU for example.
Click on the "Top" circle to create a new Group as a peer of the "administrators" Group.
Click on a "Group" to manage users associated with that group.
Note
Users can only be created on the Users tab and must exist before they can be associated with a Group.
Creating a New Group
Note
An organization unit (Org or OU) is a construct used to represent an organization whose resources are logically separate from those resources of other, similar organizations. You use OUs to control access to resources and to ensure data segregation
Caution
Do not delete the administrators Group or you will lose your ability to administrate users and groups using El Dapper

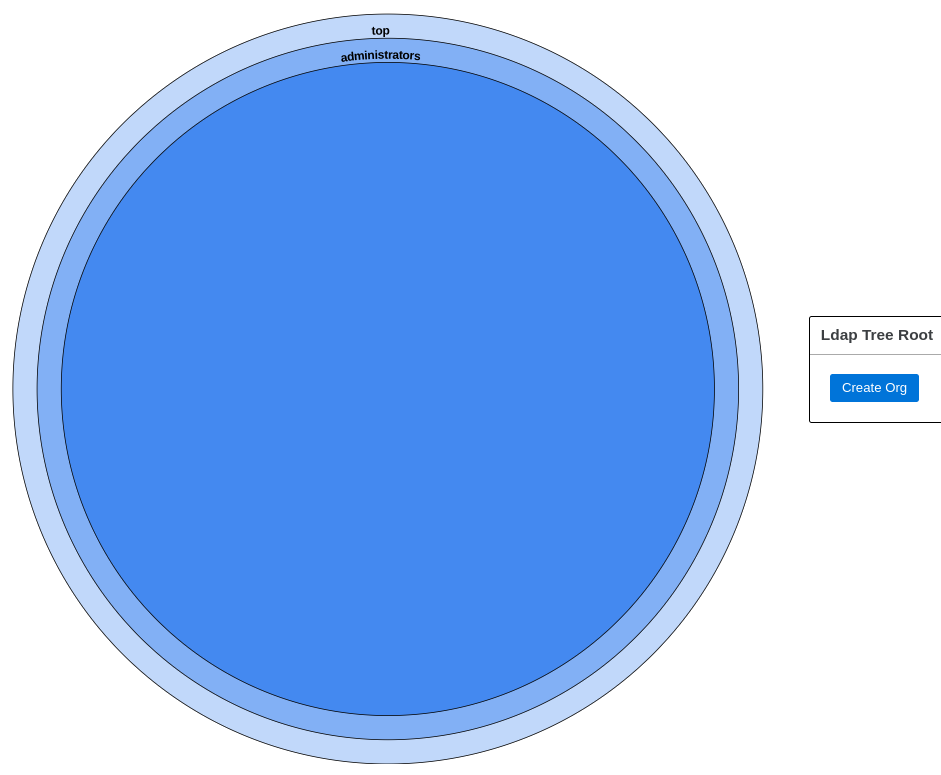

In the default instance, created as a demonstration environment, there is a top level Org called Root, an administrators group, and an admin user.
To create a new Org click the outer-most ring, the Root object, then click the
button on the right side of the screen.

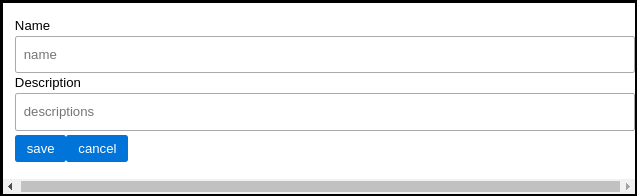

A dialog will open
allowing you to enter the name and a description for the new Org. When ready click the
button to create the new Org.
A new Group will automatically be created concatenating under the new Org name appending _members and will contain the default admin user. Additional users that have been created with LDAP System Admin permissions can now easily be added by clicking on the new Group.
Deleting the new group or an existing group by clicking the
. If you delete the last group in an Org, it will also remove the Org.

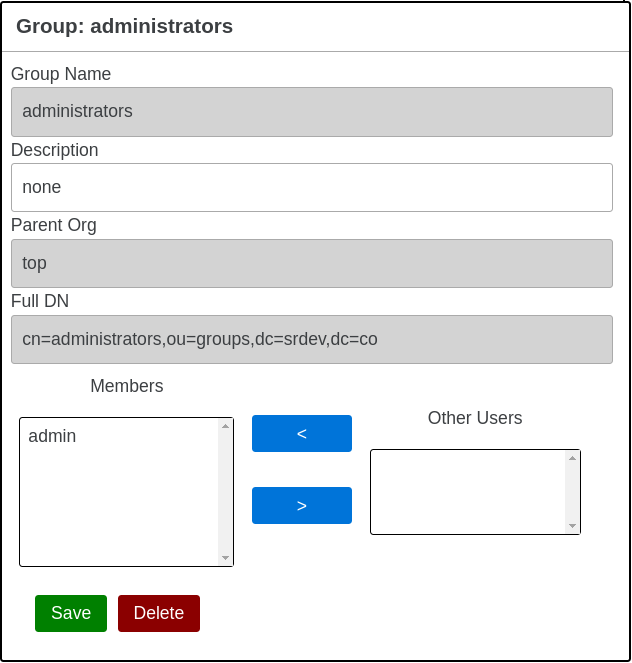

To Assign Members or Users to a Group, select the desired Group by clicking the appropriate circle. Using the dialog provided,
select desired Other Users or an existing Member and using the
buttons, add or remove them as members of that Group.
Once members are as desired, click the
button to save your changes.
Using the same process as above you can create additional Groups as necessary and manage Members. Click the deisred Org and click the
to create a new Group and begin assigning Members.
Modifying an Existing Group
To modify an existing Group click the desired cicrle and use the same process as above in Creating a New Group to make any changes or if needed, to Delete that group.
